| Cutting and ends-stiffening machine for polymer sutures (tipping machine) | |||||
|
|
|||||

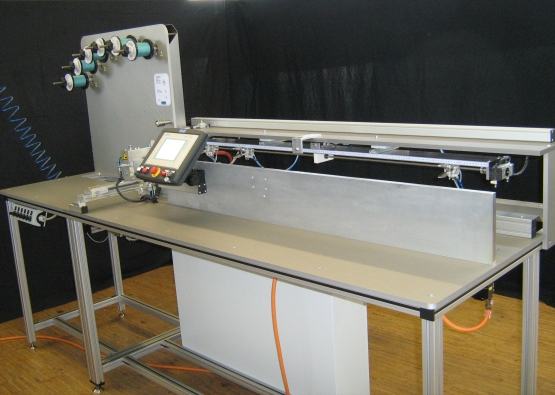

| Our suture cutting
and tipping machine which is invented especially for surgical needle
industry can be used for cutting and stiffening the ends of multifilament

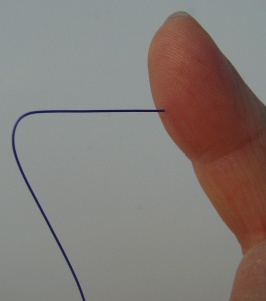

sutures on basis of PGA/PGLA and polymer. For stiffening the ends no additives (e.g. glues) are necessary. A smooth cut of sutures secures an easy threading into drilled holes of needles. |
|||||
 |
 |
||||
|
Technical information: |
|||||
| Cutting length | 100mm up to 1200mm (and on customer request) | ||||
| Cutting accuracy | +/-2 mm | ||||
| Suture diameter | USP 6/0 to USP 2 | ||||
| Suture types | multifilament PGA/PGLA, multifilament polymer | ||||
| Speed | depending on suture length, 36 to 48 pieces per minute | ||||
| Length of stiffening | on customer specifications, at both ends of suture | ||||
| Electrical connection | 230 Volt, 50Hz, 5A (on request 110 Volt, 60Hz) | ||||
| Compressed air connection | 6 to 8 bar | ||||
| Dimension/mm (WxDxH) | 2300x800x1900 | ||||
| Weight | 300 kg | ||||
|
For further information we are at your disposal. |
|||||
